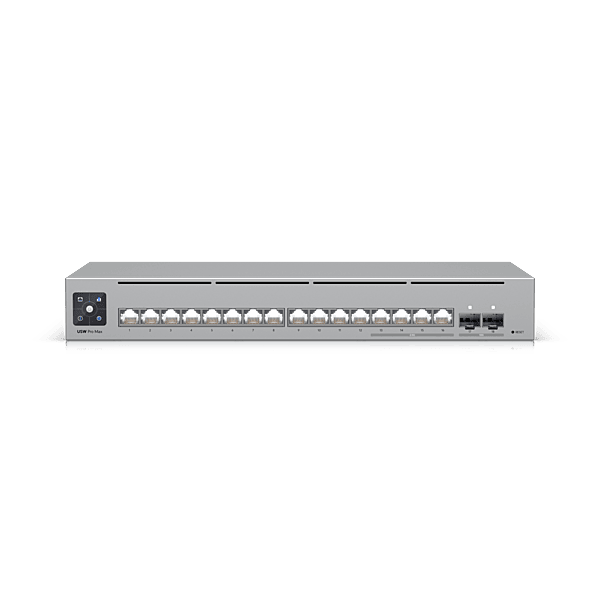

Ubiquiti UniFi Switch Pro Max 16

Overview

High-performance enterprise switch with Layer 3 capabilities, Etherlighting™, and flexible deployment options (rack, desktop, wall).

Dimensions

• 325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7")
• Form Factor: Rack mount (1U), desktop, wall
• Etherlighting™: ✓

Port Layout

• 1 GbE RJ45: 12 ports (1G/100M/10M)
• 2.5 GbE RJ45: 4 ports (2.5G/1G/100M/10M)
• 10G SFP+: 2 ports (10G/1G)
• Layer 3: ✓

Performance

• Switching Capacity: 84 Gbps
• Total Non-Blocking Throughput: 42 Gbps
• Forwarding Rate: 62 Mpps
• Supported VLANs: 1,000
• MAC Address Table Size: 16,000
• L3 Table Size – ARP Entries: 6,000
• IPv4 Routes: 512
• IPv4 Static Routes: 256
• Packet Buffer Size: 1.5 MB
• Access Lists – IPv4: 128 | MAC: 128

Layer 3 Features

• DHCP Server (Local Networks): ✓
• DHCP Relay: ✓
• Inter-VLAN Routing (Local Networks): ✓
• Static Routing (Local Networks): ✓

Layer 2 Features

• LACP Port Aggregation: ✓
• STP & RSTP: ✓
• QoS (DSCP): ✓
• Pro AV Profiles: ✓
• Advanced IGMP Config: ✓
• IGMP Snooping: ✓
• 802.1X Control: ✓
• MAC-Based ACLs & Device Isolation: ✓
• DHCP Snooping & Guarding: ✓
• Egress Rate Limit: ✓
• Flow Control: ✓
• Storm Control: ✓
• Multicast & Broadcast Rate Limiting: ✓
• MAC Address Blocking: ✓
• IP-Based ACLs & Network Isolation: ✓
• MAC-Based Port Restriction: ✓
• Port Isolation: ✓
• Port Mirroring: ✓
• Jumbo Frames: ✓
• LLDP-MED: ✓
• Voice VLAN: ✓
• Loop Protection: ✓
• Virtual Network Override: ✓

Hardware

• Max. Power Consumption: 25W
• Power Method: AC/DC Adapter (included)
• Power Input Method: USB Type-C, 5V DC, 5A
• Power Supply: AC/DC, external, 25W
• Supported Voltage Range: 4.8—5.2V DC/USB
• Management: Ethernet
• Heat Dissipation: 85.3 BTU/hr
• Weight: 1.95 kg (4.3 lb)
• Enclosure Material: SGCC steel
• Mount Material: SGCC steel
• Supported Rack Depth: 400~1200 mm (15.7-47.2")
• LCM Display: 1.3" touchscreen
• Ambient Operating Temp: -5 to 40° C (23 to 104° F)
• Ambient Operating Humidity: 10 to 90% noncondensing
• Etherlighting™ – Ethernet / SFP+: ✓
• NDAA Compliant: ✓
• Certifications: CE, FCC, IC, Anatel: 08953-24-08356

Software

Application Requirements: UniFi Network Version 8.1.127 and later

Documentation

Installation Guide
