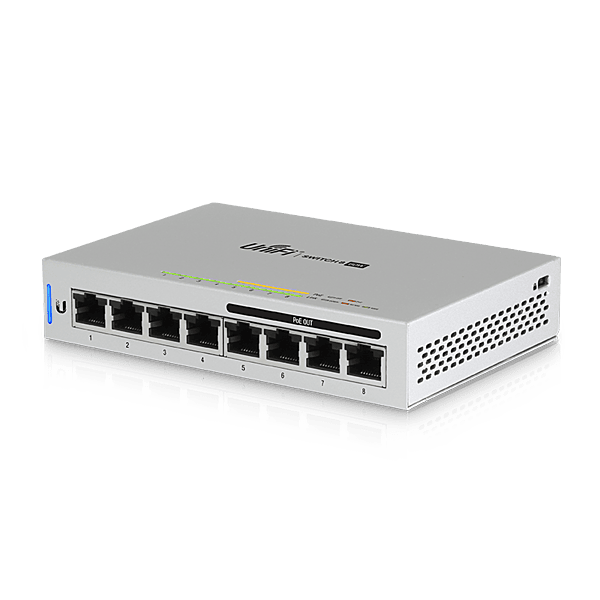

Ubiquiti UniFi Switch 8, 60W 5-Pack

Overview

Build and expand your network with Ubiquiti UniFi Switch, part of the UniFi line of products. Compact, desktop/wall-mountable, and fully manageable for robust performance.

Key Details

• Dimensions: 148 x 100 x 31 mm (5.8 x 3.9 x 1.2")
• Port Layout: 8 x 1 GbE RJ45 (4 PoE)
• Max. PoE Output: Up to 15.4W per port
• Total PoE Availability: 48W
• Form Factor: Compact desktop/wall

Performance

• Switching Capacity: 16 Gbps
• Total Non-Blocking Throughput: 8 Gbps
• Forwarding Rate: 12 Mpps
• Supported VLANs: 256
• MAC Address Table Size: 16,000
• Packet Buffer Size: 1.5 MB
• Access Lists: IPv4 128, MAC 128

Layer 2 Features

• LACP Port Aggregation ✓
• STP & RSTP ✓
• Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓
• IGMP Snooping ✓
• 802.1X Control ✓
• MAC-Based ACLs & Device Isolation ✓
• DHCP Snooping & Guarding ✓
• Egress Rate Limit ✓
• Flow Control ✓
• Storm Control ✓
• Multicast & Broadcast Rate Limiting ✓
• MAC Address Blocking ✓
• IP-Based ACLs & Network Isolation ✓
• MAC-Based Port Restriction ✓
• Port Isolation ✓
• Port Mirroring ✓
• Jumbo Frames ✓
• LLDP-MED ✓
• Voice VLAN ✓
• Loop Protection ✓
• Virtual Network Override ✓

Hardware

• PoE Ports: 4
• Max PoE per Port: 15.4W
• Max Power Consumption: 12W (Excluding PoE output)
• Power Method: AC/DC adapter (Included)
• Power Input Method: AC input
• Supported Voltage Range: 44–57V DC/PoE
• Management: Ethernet
• Weight: 432 g (15.2 oz)
• Enclosure Material: SGCC steel
• Ambient Operating Temp: -5 to 45° C (23 to 113° F)
• Ambient Humidity: 5 to 95% noncondensing
• NDAA Compliant ✓
• Certifications: CE, FCC, IC, Anatel: 04915-19-08356

Software

• Application Requirements: UniFi Network Version 6.3.51 and later
• UniFi Controller for centralized management of multiple sites
• No additional licensing or support fee required

Documentation

Download the Ubiquiti UniFi Switch Datasheet (PDF)
