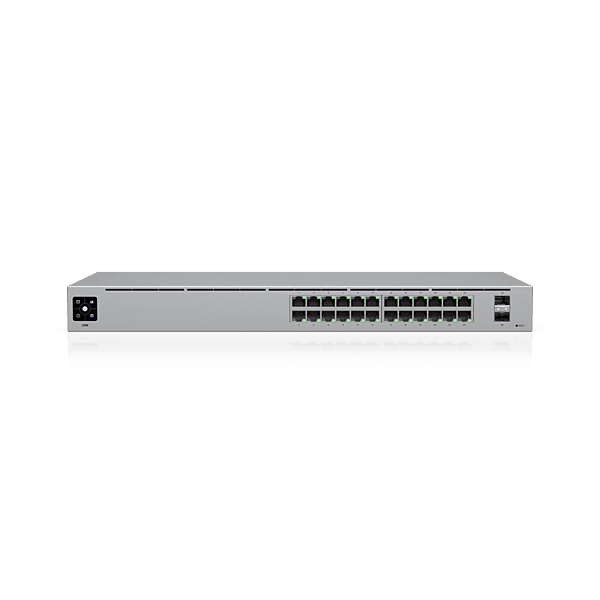

Ubiquiti UniFi Switch 24

Overview: UniFi Switch

Build and expand your network with Ubiquiti Networks® UniFi® Switch, part of the UniFi line of products.

Available with 24 or 48 RJ45 Gigabit ports, the UniFi Switch is a fully managed Gigabit switch, delivering robust performance and intelligent switching for your growing networks.

Model: US-24

• Dimensions: 442 x 200 x 44 mm (17.4 x 7.9 x 1.7")
• 24 x 1GbE RJ45 Ports (1G/100M/10M)
• 2 x 1G SFP Ports
• Rack mount (1U)
• Switching Capacity: 52 Gbps
• Total Non-Blocking Throughput: 26 Gbps
• Forwarding Rate: 39 Mpps
• Supported VLANs: 1,000
• MAC Address Table Size: 8,000
• Packet Buffer Size: 0.5 MB
• Max. Power Consumption: 25W

• Pricing and product availability subject to change without notice.

Features

Layer 2 Features & Security
LACP Port Aggregation, STP & RSTP, Advanced IGMP Configuration, IGMP Snooping, 802.1X Control, MAC-Based ACLs & Device Isolation, DHCP Snooping & Guarding, Egress Rate Limit, Flow Control, Storm Control, Multicast & Broadcast Rate Limiting, MAC Address Blocking, IP-Based ACLs & Network Isolation, MAC-Based Port Restriction, Port Isolation, Port Mirroring, Jumbo Frames, LLDP-MED, Voice VLAN, Loop Protection, Virtual Network Override.

Advanced Port Management
Each port supports custom settings including VLAN configuration, operation mode (switching, mirroring, or aggregate), and more.

Optical Fiber Connectivity
Two SFP ports support uplinks of up to 1 Gbps. 48-port models include two SFP+ ports for uplinks of up to 10 Gbps.

Seamless Integration
Integrates with UniFi Network software (v7.2.94 or later) to manage multiple sites, create VLANs, monitor network traffic, and configure devices.

Product Views

Front View

Rear View

Deployment

Network Topology
A DHCP-enabled network is required for the UniFi Switch to obtain an IP address. Devices connected to the switch will also obtain IP addresses automatically.

Management Station
A UniFi Cloud Key or management station running the UniFi Controller software (v7.2.94 or later) can manage the switch locally or in the cloud.

Specifications

Hardware

• Weight: 2.7 kg (without mounting brackets), 2.8 kg (with brackets)
• Enclosure Material: SGCC steel
• Mount Material: SGCC steel
• Supported Rack Depth: 400–1200 mm (15.7–47.2")
• LCM Display: 1.3" touchscreen
• Operating Temp: -5 to 45° C (23 to 113° F)
• Humidity: 10–90% noncondensing
• NDAA Compliant: ✓
• Certifications: CE, FCC, IC, Anatel: 17193-20-08356
• Heat Dissipation: 85.3 BTU/hr

Software

Application Requirements: UniFi Network v7.2.94 or later

Managed via the UniFi Controller software for centralized management, VLAN setup, and multi-site control.

Miscellaneous

Includes TOUGHCable options, outdoor-rated shielded cables, and ESD protection accessories.

Documentation

Download the Ubiquiti UniFi Switch Datasheet (PDF)
