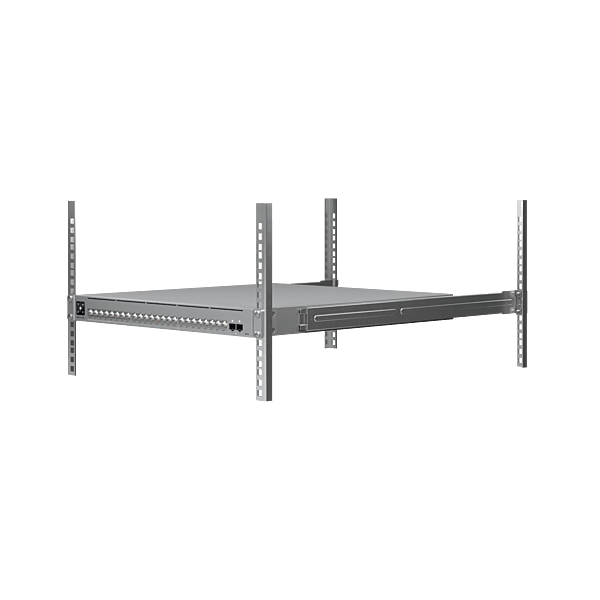

Ubiquiti UniFi Pro XG 24 PoE
Non-returnable
Professional-grade, 24-port Layer 3 Etherlighting™ PoE+++ switch with (16) 10 GbE, (8) 2.5 GbE, and (2) 25G SFP28 ports.
SKU: #USW-PRO-XG-24-POE
Get a Quote
- Quantity
Product Details
Overview
| Dimensions | 442 x 480 x 44 mm (17.4 x 18.9 x 1.7") |
| Port Layout | 2.5 GbE RJ45: 8 (All PoE+++) (2.5G/1G/100M/10M) 10 GbE RJ45: 16 (All PoE+++) (10G/5G/2.5G/1G/100M/10M) 25G SFP28: 2 (25G/10G/1G) |
| Max. PoE Output | Up to PoE+++ |
| Total PoE Availability | 720W |
| Redundancy | DC Power Backup |
| Layer 3 | ✓ |
| Form Factor | Rack mount (1U) |
| Etherlighting™ | ✓ |
Performance
| Switching Capacity | 460 Gbps |
| Total Non-Blocking Throughput | 230 Gbps |
| Forwarding Rate | 342 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 128,000 |
| L3 Table Size – ARP Entries | 128,000 |
| L3 Table Size – IPv4 Routes | 256,000 |
| L3 Table Size – IPv4 Static Routes | 512 |
| Packet Buffer Size | 8 MB |
| Access Lists – IPv4 | 256 |
| Access Lists – MAC | 256 |
Layer 3 Features
| DHCP Server (Local Networks) | ✓ |
| DHCP Relay | ✓ |
| Inter-VLAN Routing (Local Networks) | ✓ |
| Static Routing (Local Networks) | ✓ |
Layer 2 Features
| LACP Port Aggregation | ✓ |
| STP & RSTP | ✓ |
| QoS (DSCP) | ✓ |
| Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) | ✓ |
| Advanced IGMP Configuration (Querier, Fast Leave, Router Port) | ✓ |
| IGMP Snooping | ✓ |
| 802.1X Control | ✓ |
| MAC-Based ACLs & Device Isolation | ✓ |
| DHCP Snooping & Guarding | ✓ |
| Egress Rate Limit | ✓ |
| Flow Control | ✓ |
| Storm Control | ✓ |
| Multicast & Broadcast Rate Limiting | ✓ |
| MAC Address Blocking | ✓ |
| IP-Based ACLs & Network Isolation | ✓ |
| MAC-Based Port Restriction | ✓ |
| Port Isolation | ✓ |
| Port Mirroring | ✓ |
| Jumbo Frames | ✓ |
| LLDP-MED | ✓ |
| Voice VLAN | ✓ |
| Loop Protection | ✓ |
| Virtual Network Override | ✓ |
Hardware
| PoE Ports | PoE+++ 24 |
| Max. PoE Wattage per Port | PoE: 15.4W PoE+: 30W PoE++: 60W PoE+++: 90W |
| Max. Power Consumption | 150W (Excluding PoE Output), 870W (Including PoE Output) |
| Power Method | (1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 870W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet, AR |
| Weight | Without mounting brackets: 7.9 kg (17.4 lb) With mounting brackets: 8 kg (17.6 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 482.6 mm (19") four-post racks, Posts 600–1,066 mm (23.6-42”) |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ±30kV, Contact: ±20kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10–90% noncondensing |
| Etherlighting™ | Ethernet ✓, SFP28 ✓ |
| LEDs | RPS ✓ |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, Anatel: 04322-25-08356 |
Software
| Application Requirements | UniFi Network Version 9.1.120 and later |
