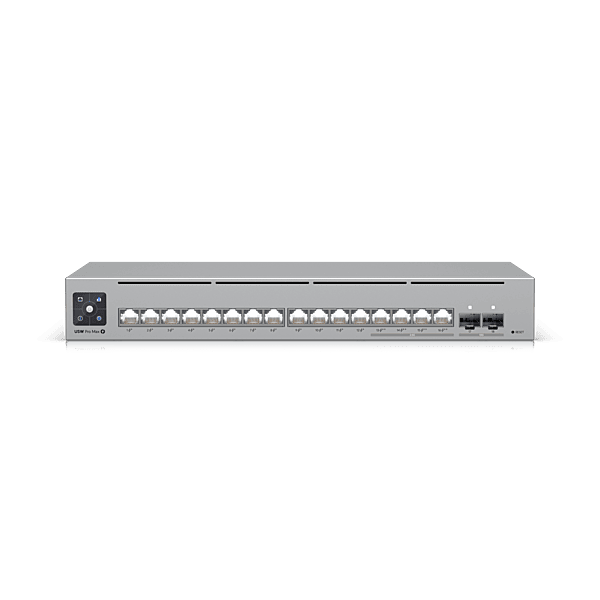

Ubiquiti UniFi Pro Max 16 PoE
Non-returnable
A 16-port, Layer 3 Etherlighting™ switch with 2.5 GbE, PoE++ output, and versatile mounting options.
SKU: #USW-PRO-MAX-16-POE
Get a Quote
- Quantity
Product Details
Overview
| Dimensions | 325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7") |
| 1 GbE RJ45 | 12 (All PoE+) (1G/100M/10M) |
| 2.5 GbE RJ45 | 4 (All PoE++) (2.5G/1G/100M/10M) |
| 10G SFP+ | 2 (10G/1G) |
| Max. PoE Output | Up to PoE++ |
| Total PoE Availability | 180W |
| Layer 3 | ✓ |
| Form Factor | Rack mount (1U), desktop, wall |
| Etherlighting™ | ✓ |
Performance
| Switching Capacity | 84 Gbps |
| Total Non-Blocking Throughput | 42 Gbps |
| Forwarding Rate | 62 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 16,000 |
| ARP Entries | 6,000 |
| IPv4 Routes | 512 |
| IPv4 Static Routes | 256 |
| Packet Buffer Size | 1.5 MB |
| Access Lists (IPv4) | 128 |
| Access Lists (MAC) | 128 |
Layer 3 Features
| DHCP Server (Local Networks) | ✓ |
| DHCP Relay | ✓ |
| Inter-VLAN Routing (Local Networks) | ✓ |
| Static Routing (Local Networks) | ✓ |
Layer 2 Features
| LACP Port Aggregation | ✓ |
| STP & RSTP | ✓ |
| QoS (DSCP) | ✓ |
| Pro AV Profiles | ✓ |
| Advanced IGMP Configuration | ✓ |
| IGMP Snooping | ✓ |
| 802.1X Control | ✓ |
| MAC-Based ACLs & Device Isolation | ✓ |
| DHCP Snooping & Guarding | ✓ |
| Egress Rate Limit | ✓ |
| Flow Control | ✓ |
| Storm Control | ✓ |
| Multicast & Broadcast Rate Limiting | ✓ |
| MAC Address Blocking | ✓ |
| IP-Based ACLs & Network Isolation | ✓ |
| MAC-Based Port Restriction | ✓ |
| Port Isolation | ✓ |
| Port Mirroring | ✓ |
| Jumbo Frames | ✓ |
| LLDP-MED | ✓ |
| Voice VLAN | ✓ |
| Loop Protection | ✓ |
| Virtual Network Override | ✓ |
Hardware
| PoE+ Ports | 12 |
| PoE++ Ports | 4 |
| Max. PoE Wattage per Port | PoE: 15.4W PoE+: 32W PoE++: 64W |
| Max. Power Consumption | 25W (Excluding PoE Output) 210W (Including PoE Output) |
| Power Method | AC Adapter |
| Power Input Method | AC input |
| Power Supply | AC/DC, external, 210W |
| Supported Voltage Range | 50–54V DC |
| Management | Ethernet, AR |
| Heat Dissipation | 68 BTU/hr (Excluding PoE Output) |
| Weight | 2.1 kg (4.6 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400~1200 mm (15.7-47.2") |
| LCM Display | 1.3" touchscreen |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Etherlighting™ | Ethernet ✓, SFP+ ✓ |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, Anatel: 08953-24-08356 |
Software
| Application Requirements | UniFi Network Version 8.1.127 and later |
