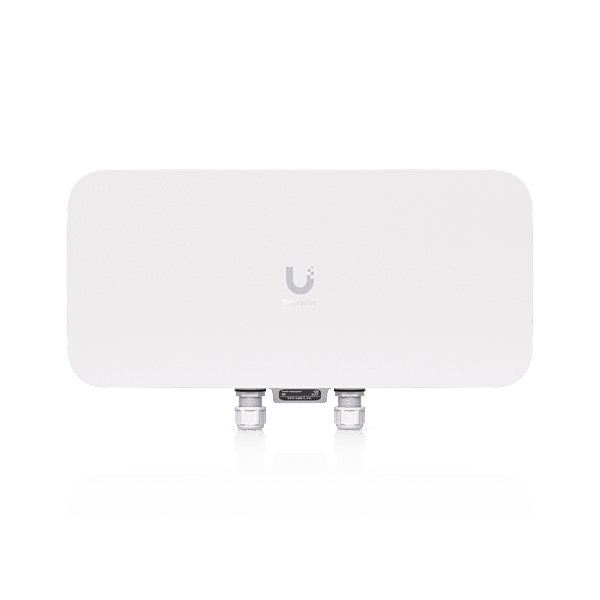

Ubiquiti UniFi E7 Audience
Non-returnable
1500+ client devices for high-density environments like stadiums and arenas, with 6 GHz support
SKU: #E7-AUDIENCE
Get a Quote
- Quantity
Product Details
Overview
| Dimensions | Device: 474.1 x 265.5 x 42.2 mm (18.7 x 10.5 x 1.7") Bracket: 150.4 x 113.6 x 125 mm (5.9 x 4.5 x 4.9") |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 12 |
| Coverage Area | 465 m² (5,000 ft²) |
| Max. Client Count | 1500+ |
| Uplink | 10 GbE / 1 GbE |
| Mounting | Wall, Pole (Mounts Included), VESA (Optional) |
| Weatherproofing | IP68 |
| Power Method | PoE++ |
Performance
| Specification | 6 GHz | 5 GHz |
|---|---|---|
| MIMO | Low Band: 4 x 4 (DL/UL MU-MIMO) High Band: 4 x 4 (DL/UL MU-MIMO) | 4 x 4 (DL/UL MU-MIMO) |
| Max. Data Rate | Low Band: 11.5 Gbps (BW320) High Band: 11.5 Gbps (BW320) | 8.6 Gbps (BW240) |
| Antenna Gain | Directional internal: 15 dBi, 50° x 50° Directional internal: 11 dBi, 90° x 90° | Directional internal: 15 dBi, 50° x 50° Directional internal: 11 dBi, 90° x 90° |
| Max. TX Power | Low Band: 30 dBm (36 dBm EIRP) High Band: 30 dBm (36 dBm EIRP) | 30 dBm |
| Max. BSSIDs | 8 per Radio | |
| Supported Data Rates |
| |
Features
| Wireless Meshing | ✓ |
| Band Steering | ✓ |
| 802.11v BSS Transition Management | ✓ |
| 802.11r Fast Roaming | ✓ |
| 802.11k Radio Resource Management (RRM) | ✓ |
| Zero-Wait DFS | ✓ |
| Advanced Radio Management | ✓ |
| Real-Time Spectral Analysis | ✓ |
| Passpoint (Hotspot 2.0) | ✓ |
| Captive Hotspot Portal Custom Branding Landing Page | ✓ |
| Voucher Authentication | ✓ |
| Payment-Based Authentication | ✓ |
| External Portal Server Support | ✓ |
| Password Authentication | ✓ |
| Guest Network Isolation | ✓ |
| Private Pre-Shared Key (PPSK) | ✓ |
| WiFi Speed Limiting | ✓ |
| Client Device Isolation | ✓ |
| WiFi Schedules | ✓ |
| RADIUS over TLS (RadSec) | ✓ |
| Dynamic RADIUS-assigned VLAN | ✓ |
Hardware
| Max. Power Consumption | 51W |
| Supported Voltage Range | 42.5–57V DC |
| Networking Interface | (1) 10 GbE RJ45 port, (1) GbE RJ45 port |
| PRISM™ RF Filtering | ✓ |
| Weight | Device: 3.3 kg (7.3 lb), With mount: 4.3 kg (9.5 lb) |
| Wind Loading | 164.75 N at 200 km/h (37 lbf at 125 mph) |
| Pole Mount Diameter | 1–3" (25–76 mm) |
| Antennas | (1) Internal with directional patterns |
| Management | Ethernet |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Mount Material | Aluminum alloy |
| LEDs | System R/G/B |
| Channel Bandwidth | VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) |
| NDAA Compliant | ✓ |
| Certifications | FCC, IC |
| Operating Frequency | US/CA: U-NII-1: 5150–5250 MHz, U-NII-2A: 5250–5350 MHz, U-NII-2C: 5470–5725 MHz, U-NII-3: 5725–5850 MHz, U-NII-5 & U-NII-7: 5925–6425 MHz, 6525–6875 MHz Worldwide: 5150–5850 MHz, 5925–7125 MHz |
| Ambient Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
Software
| Application Requirements | UniFi Network Version 9.2.87 and later |
| Mobile App | iOS™ version 10.24.1 and later Android™ version 10.25.2 and later |
