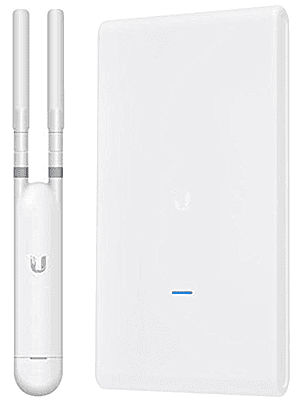

Ubiquiti UniFi Access Point AC Mesh

Overview

The UniFi AC Mesh AP features the latest Wi-Fi 802.11ac, 3x3 MIMO technology in a refined industrial design and is ideal for deployment of maximum‑performance wireless networks.

Deploy the UniFi AC Mesh AP indoors or outdoors, in wireless networks requiring maximum performance. Sporting a weatherproof design, the UniFi AC Mesh AP features simultaneous, dual-band, 3x3 MIMO technology and convenient 802.3af PoE/802.3at PoE+ compatibility. It is available in single- and five-packs*.

Scalable Enterprise Wi-Fi Management

UniFi is the revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability, and a central management controller. The UniFi AC Mesh APs have a refined industrial design and can be easily installed using the included mounting hardware.

Easily accessible through any standard web browser, the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance.

Use the UniFi Controller software to quickly configure and administer an enterprise Wi-Fi network – no special training required. RF map and performance features, real-time status, automatic UAP device detection, and advanced security options are all seamlessly integrated.

802.11ac or Gigabit Wi-Fi is the newest Wi-Fi protocol for the 802.11 wireless networking standard. It can deliver more than three times the data transfer speeds of the current 802.11n protocol in addition to improved network robustness, reliability and RF bandwidth utilization efficiency for demanding applications such as HD video, video conferencing, streaming media, VOIP and more.

Ubiquiti’s UniFi software offers unique and innovative “Zero Hand-Off Roaming” technology that enables mobile users to roam anywhere and seamlessly maintain their connection as they switch to the nearest AP.

UniFi builds on previous UniFi releases, which offer comprehensive hotspot management and a flexibly deployed software controller. The controller can run on-premises, in a private cloud or public cloud.

* Four- and five-packs do not ship with PoE adapters; we recommend powering the UniFi APs with the UniFi Switch instead.

Features

Model: UAP-AC-M

The UniFi AC Mesh AP provides simultaneous, dual-band, 2x2 MIMO technology and is available in single- and five-packs*.

Compact Form Factor The UniFi AC Mesh AP discreetly integrates into any environment.

Weather-Resistant Enclosure The UniFi AC Mesh AP can be used indoors or outdoors.

Versatile Mounting The UniFi AC Mesh AP can be mounted on a wall, pole, or fast-mount of a Ubiquiti high-gain antenna. (All accessories are included.)

Multiple Power Options Compatible with 802.3af PoE Alternative A and 24V passive PoE.

Antenna Options Use included omni antennas or optional connectorized antennas.

Model: UAP-AC-M-PRO

The UniFi AC Mesh Pro AP provides simultaneous, dual-band, 3x3 MIMO technology and is available in single- and five-packs*.

Weather-Resistant Form Factor Ideal for outdoor deployment.

Powerful Coverage Built-in dual-band omnidirectional antennas deliver expanded range coverage.

Mounting Flexibility Wall or pole mounting included.

Dual Gigabit Ethernet Ports Primary for data/PoE, secondary for bridging.

Multiple Power Options 802.3af compatible switch or included PoE adapter.

Scalable Enterprise Wi-Fi Management

The UniFi Controller v4 software is ideal for high-density deployments requiring low latency.

Save Money and Save Time

Non-dedicated software controller can be deployed on Mac, Linux, private cloud, or public cloud.

Powerful Hardware

802.11AC Dual-Radio APs with latest Wi-Fi MIMO technology.

Intuitive UniFi Controller Software

Easy-to-learn user interface for configuration and management.

Expandable

Unlimited scalability from one AP to thousands.

Deployment

Extend Your Coverage

Manage multiple sites with UniFi Controller software in NOC or cloud. Multi-tenancy for service providers. Deployment examples:

Below are some examples of how UniFi APs can be deployed.

Specifications

UAP-AC-M

* Only the single-pack of the UAP-AC-M includes a PoE adapter.

Advanced Traffic Management

Supported Data Rates (Mbps)

UAP-AC-M-PRO

* Only the single-pack of the UAP-AC-M-PRO includes a PoE adapter.

Advanced Traffic Management

Supported Data Rates (Mbps)

UniFi Product Comparison

Use Cases

Mesh Multi-Hop
A large outdoor area, such as a park with minimal infrastructure, can take advantage of a mesh network comprised of the UniFi AC Mesh models.

Omnidirectional Coverage (Indoors/Outdoors)
The UniFi AC Mesh AP includes adjustable dual-band omni antennas and supports optional 5 GHz omni antennas for high-density environments like conference halls.

Directional Coverage (Outdoors)
Supports sector antennas for broad outdoor coverage with focused signal distribution.

Maximum Coverage (Outdoors)
The UniFi AC Mesh Pro AP is ideal for applications requiring 3x3 MIMO data rates for strong omni coverage in dense environments.

Temporary Installations
Perfect for fast deployment scenarios such as concerts, festivals, or outdoor events requiring quick setup and teardown.

Software

UniFi Controller Software

After the UniFi Controller software is installed on a Mac or PC, it can be accessed through any device using a web browser. The UniFi Controller allows administrators to instantly provision thousands of UniFi APs, map out networks, manage system traffic, and configure individual devices.

Packed with Features

Use the UniFi Controller to provision thousands of UniFi APs, map out networks, manage system traffic, and deploy additional access points with ease.

Manage Your Networks from a Single Control Plane

The UniFi Controller can be accessed via any web browser. A single controller running in the cloud can manage multiple sites, enabling distributed deployments and multi-tenancy for managed service providers.

Intuitive Configuration, Control, and Monitoring

Quickly provision and configure thousands of UniFi APs with a user-friendly interface designed for efficient network management and monitoring.

Breakthrough RF Map

Use the RF map to monitor and analyze radio frequencies for optimal AP placement, configuration, and troubleshooting.

Powerful RF Performance Features

Advanced RF tools include spectral analysis, airtime fairness, and band steering to improve wireless performance.

Detailed Analytics

Configurable reporting and analytics help manage large user populations and speed up troubleshooting.

Wireless Uplink

Wireless Uplink enables connectivity between APs to extend range. One wired UniFi AP can support up to four wireless downlinks on a single band, allowing flexible deployment and real-time topology changes.

Guest Portal / Hotspot Support

Customize guest portals with authentication, hotspot setup, and external portal options. Apply bandwidth limits, data caps, and session durations for users.

• Credit card billing integration
• Voucher-based authentication
• Hotspot Manager for vouchers and guest control
• Full customization and branding of portal pages

Multi-Site Management

Manage multiple networks from a single controller. Each site is logically separated with its own configuration, statistics, guest portal, and admin access controls.

WLAN Groups

Create multiple WLAN groups and assign them to specific AP radios for flexible large-scale deployments.

Remote Firmware Upgrade

Upgrade device firmware remotely to save time and simplify maintenance.

Users and Guests

Monitor and control access for users and guests connected to your network.

Seamless Roaming

Create a unified wireless network across multiple APs, allowing users to move freely while maintaining a stable connection.

Custom Maps and Google Maps Integration

Upload custom maps or use Google Maps for a visual representation of your wireless deployment.

Dashboard

The dashboard provides a visual overview of your network status and key performance metrics.

Statistics

UniFi organizes and visualizes network traffic with clear, easy-to-read graphs for better insights.

UniFi Controller Software

After the UniFi Controller software is installed on a Mac or PC, the UniFi Controller can be accessed through any device using a web browser. The UniFi Controller allows administrators to instantly provision thousands of UniFi APs, map out networks, manage system traffic, and configure individual UniFi AP devices.

Packed with Features

Use the UniFi Controller to provision thousands of UniFi APs, map out networks, manage system traffic, and quickly deploy additional UniFi access points.

Manage Your Networks from a Single Control Plane

The UniFi Controller can be accessed through any device using a web browser. A single controller running in the cloud can manage multiple sites, enabling distributed deployments and multi-tenancy for managed service providers.

Intuitive Configuration, Control and Monitoring

The UniFi Controller enables administrators to instantly provision and configure thousands of access points while maintaining full control and monitoring of network performance and traffic.

Breakthrough RF Map

Use the RF Map to monitor and analyze radio frequencies for optimal access point placement, configuration, and troubleshooting.

Powerful RF Performance Features

• Spectral analysis
• Airtime fairness
• Band steering

Detailed Analytics

Use configurable reporting and analytics to manage large user populations and quickly identify network issues for faster troubleshooting.

Wireless Uplink

Wireless Uplink functionality enables wireless connectivity between access points for extended coverage. One wired UniFi AP uplink can support up to four wireless downlinks on a single operating band, allowing easy deployment and flexible network topology.

Guest Portal / Hotspot Support

UniFi provides advanced guest portal customization and hotspot management features including authentication, bandwidth control, and flexible deployment options.

• Built-in billing integration using major credit cards
• Voucher-based authentication
• Hotspot Manager for voucher creation and guest management
• Payment refund management
• Full customization and branding of hotspot portal pages
• Rate limiting for guest portal and hotspot packages
• Bandwidth limits (upload/download)
• Usage and session duration limits

Advanced Management Features

Multi-Site Management

A single UniFi Controller running in the cloud can manage multiple sites and distributed deployments. Each site remains logically separated with its own configuration, statistics, guest portal, maps, and administrator accounts.

WLAN Groups

Create multiple WLAN groups and assign them to specific access points for flexible configuration across large wireless deployments.

Remote Firmware Upgrade

Save time and maintenance effort by remotely upgrading firmware across all UniFi devices.

Users and Guests

Track and control network access for individual users and guest devices connected to your network.

One UniFied Network with Zero-Handoff Roaming

Create one large wireless network across multiple access points so users can roam seamlessly while maintaining their connection as they move between APs.

Custom Maps and Google Maps Integration

Upload custom building maps or use Google Maps to visualize your wireless network layout and device locations.

Controller Dashboard Features

Dashboard

The UniFi Dashboard provides a visual overview of network status and key information about each network segment.

RF Map

Monitor UniFi APs and analyze the surrounding RF environment to optimize wireless performance.

Statistics

UniFi organizes and visualizes network traffic with clear, easy-to-read graphs for performance monitoring and troubleshooting.

Miscellaneous

TOUGHCable

Protect your networks from the most brutal environments with Ubiquiti's industrial-grade shielded ethernet cable, TOUGHCable.

Key Benefits

• Increase Performance: Dramatically improve your ethernet link states, speeds, and overall performance with Ubiquiti TOUGHCables.
• Extreme Weatherproof: Built to perform even in the harshest weather and environments.
• ESD Damage Protection: Protect your networks from devastating electrostatic discharge (ESD) attacks.
• Extended Cable Support: Designed for increased power handling and extended cable run lengths.

Bulletproof Your Networks

TOUGHCable is currently available in two versions: PRO Shielding Protection and CARRIER Shielding Protection.

TOUGHCable PRO

Category 5e, outdoor, carrier-class shielded cable with an integrated ESD drain wire.

TOUGHCable CARRIER

Category 6, outdoor, carrier-class shielded cable featuring an integrated ESD drain wire, anti-crosstalk divider, and secondary shielding. Optimized for Gigabit Ethernet networks.

Additional Information

• 24 AWG copper conductor pairs
• 26 AWG integrated ESD drain wire to prevent ESD damage
• PE outdoor-rated, weatherproof jacket
• Multi-layered shielding
• Available in lengths of 1000 ft (304.8 m)

TOUGHCable Connectors

Specifically designed for use with Ubiquiti TOUGHCables and available in 100-piece bags, TOUGHCable Connectors protect against ESD attacks and Ethernet hardware damage while enabling rapid field deployment without soldering.

ESD attacks are a leading cause of device failures. By using a grounded Ubiquiti Power over Ethernet (PoE) Adapter together with TOUGHCable and TOUGHCable Connectors, you can effectively protect your network from ESD damage.

* Four- and five-packs do not ship with PoE adapters; we recommend powering the UniFi APs with the UniFi Switch instead.

Documentation

Download the Ubiquiti UniFi Access Point AC Mesh Series Datasheet (PDF)
